nandFlex

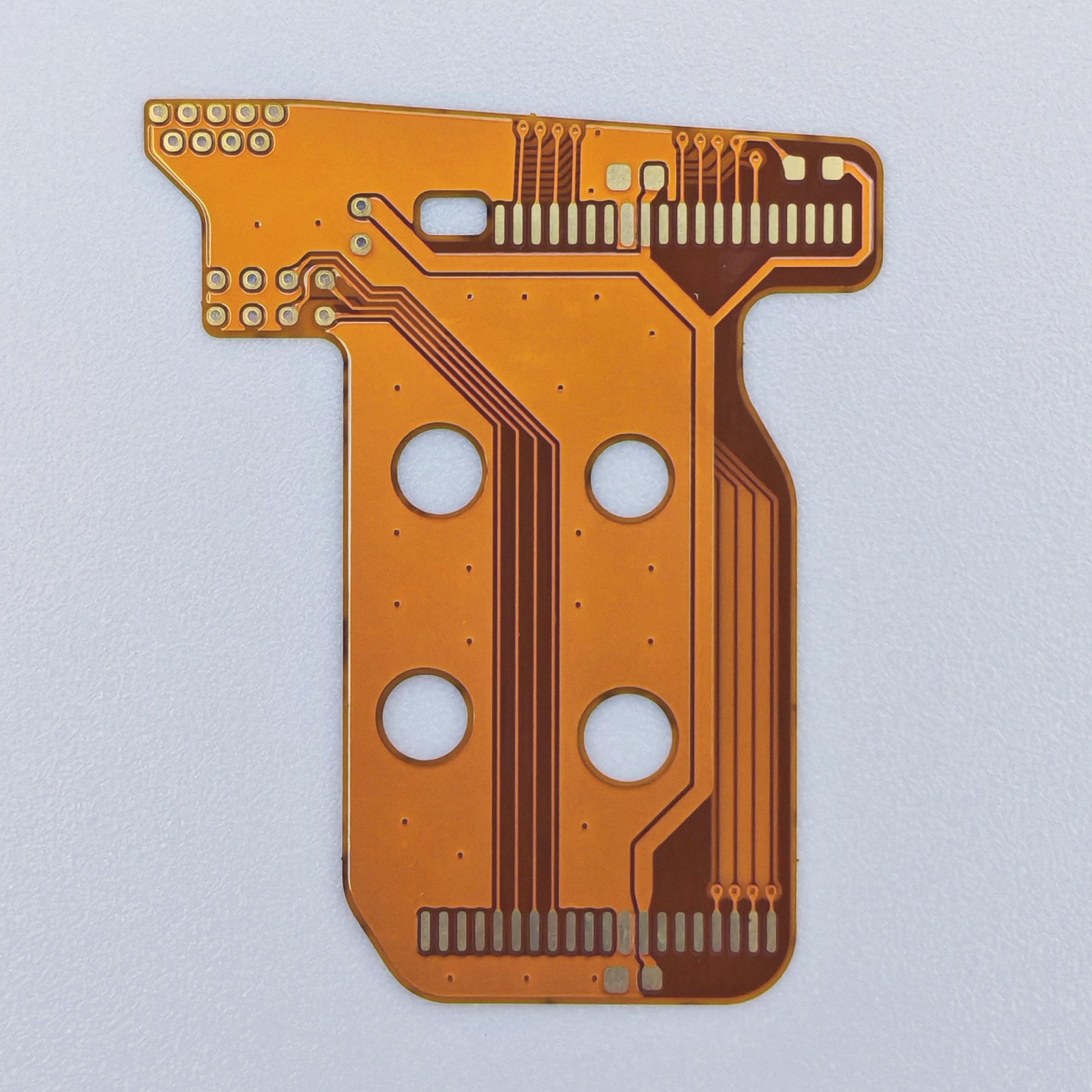

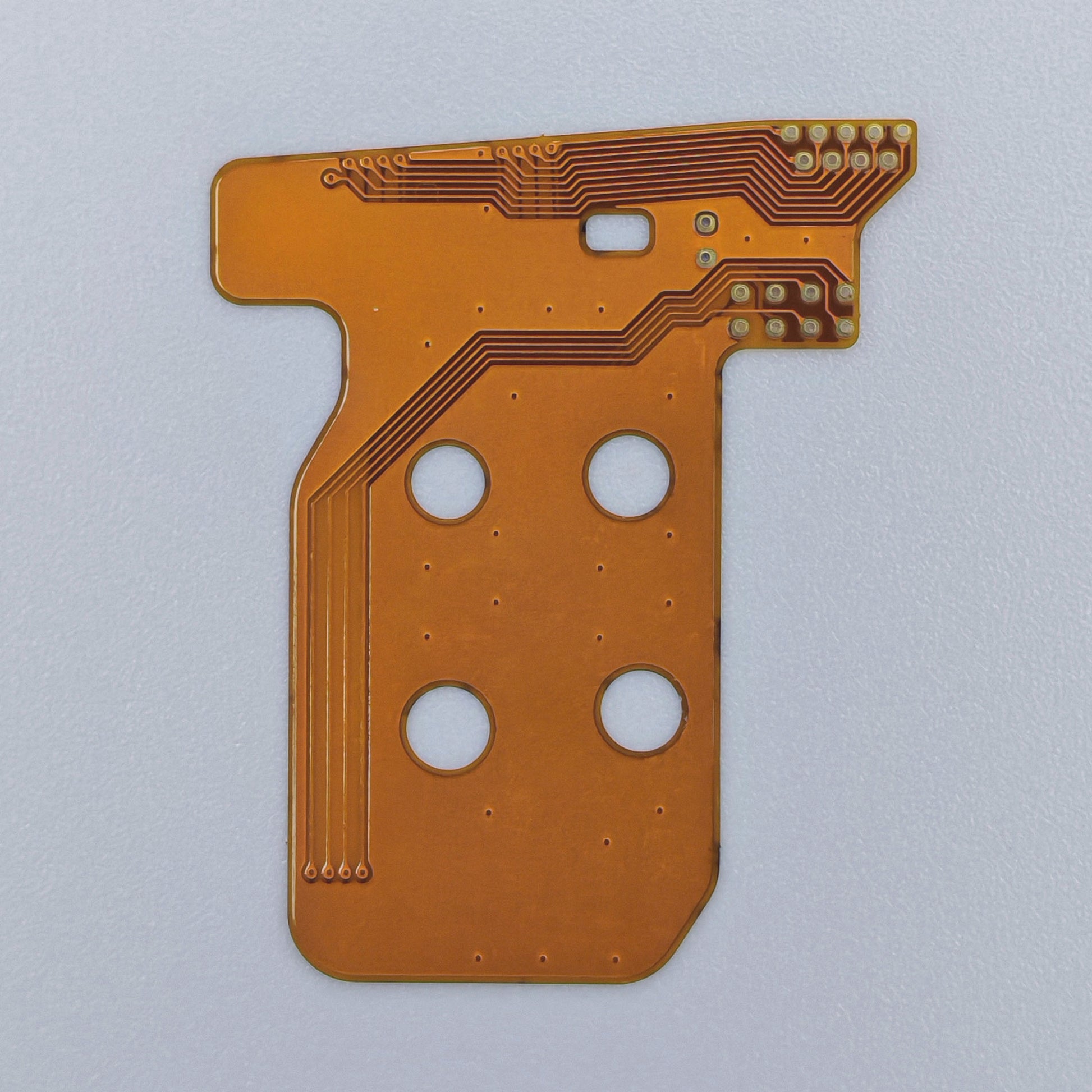

Low-profile NAND relocation flex for 4-layer Nintendo Wiis. This design stays entirely below the top set of NAND vias to enable extreme OMEGA trims!

Designed in KiCAD and manufactured by PCBWay.

Source: https://github.com/mackieks/nandFlex

nandFlex is based on Jumar Macato's OmegaFlex and licensed under CERN Open Hardware Licence Version 2 - Strongly Reciprocal.
