Fujiflex

Open source GCVideo DVI flex for 4-layer Nintendo Wii portables and mini builds. Fully assembled and flashed with GCVideo-DVI 3.1.

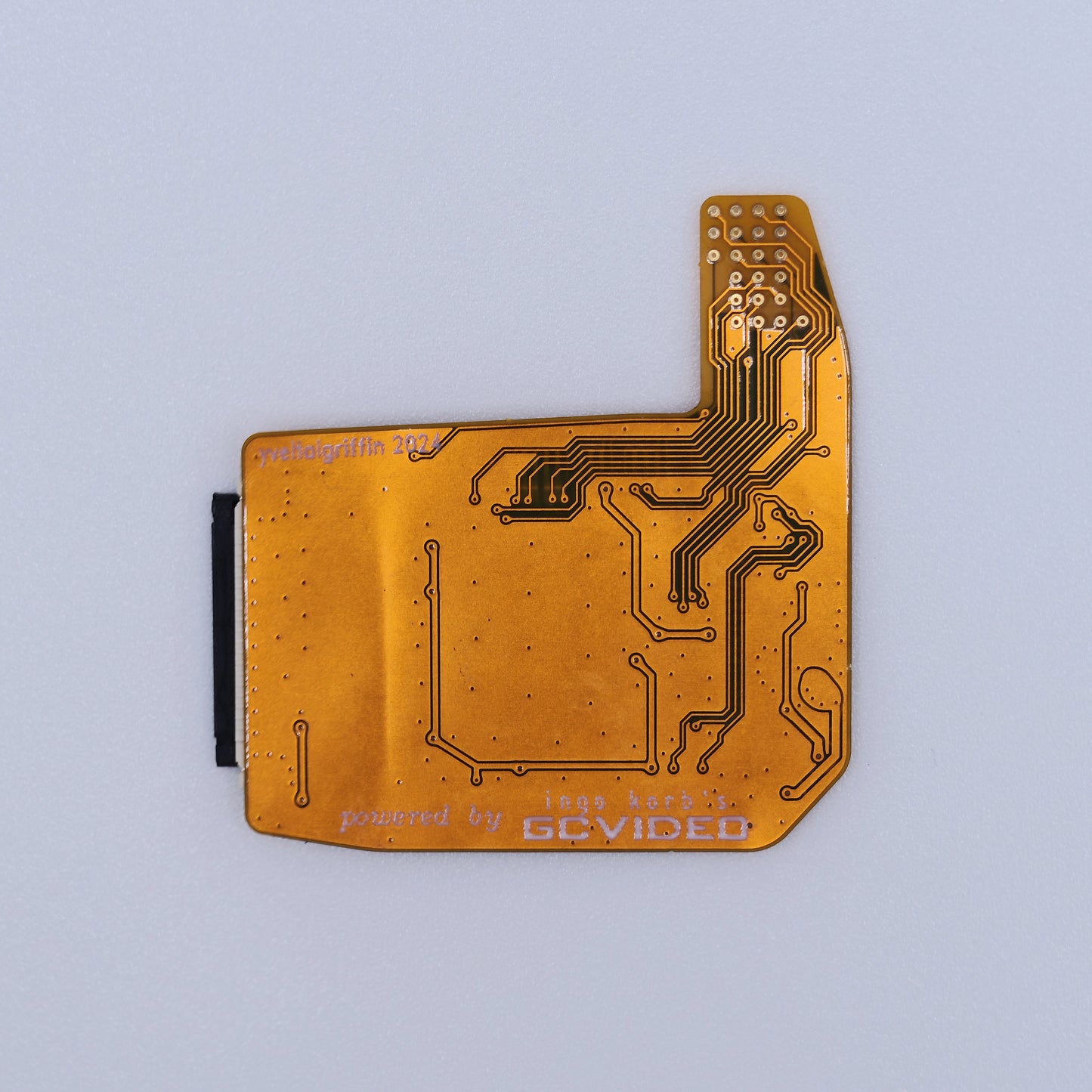

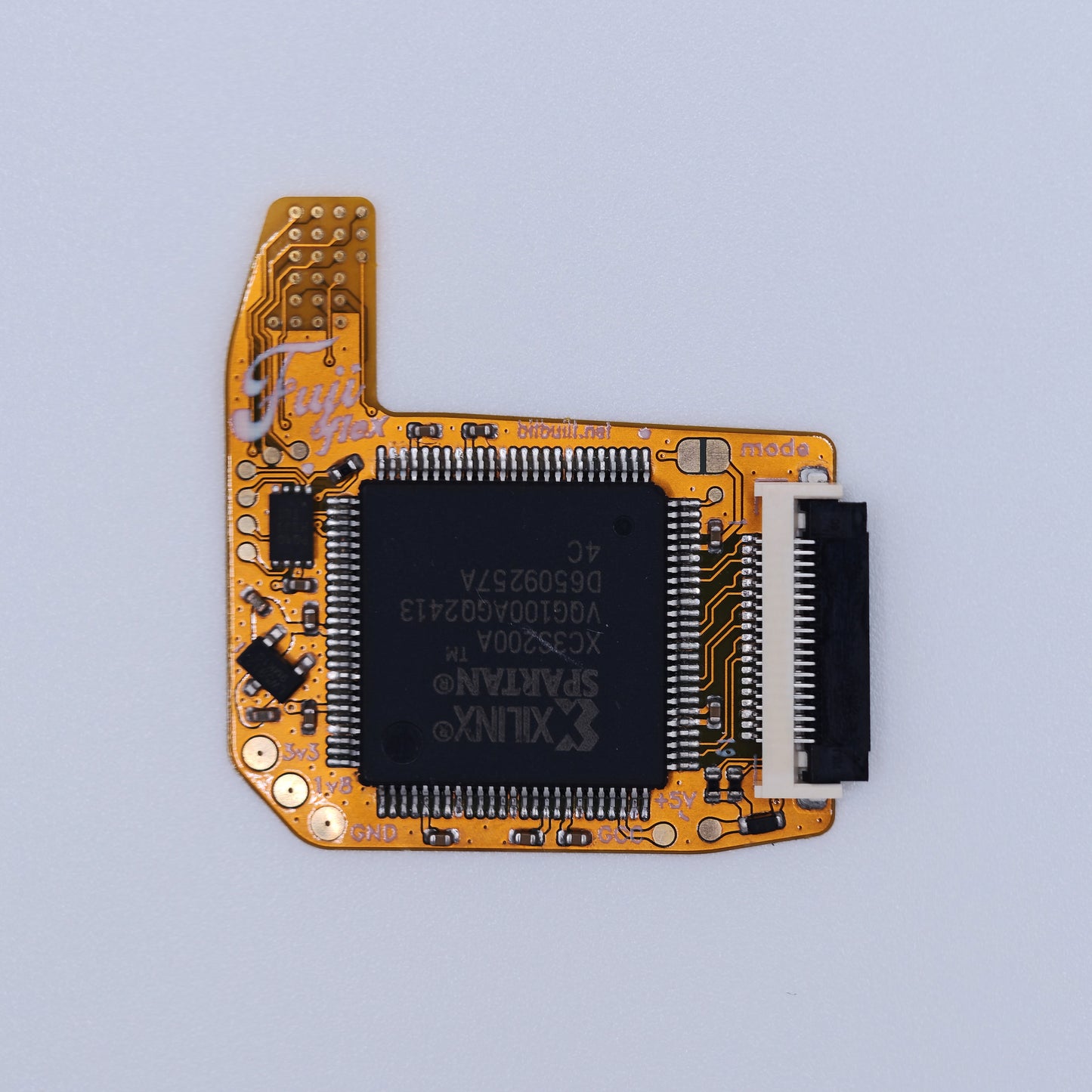

• Compact 28 x 30mm 2-layer flex PCB
• Powered from 3.3V and 1.8V for lower power consumption (225mW)
• 19-pin Molex 5052781933 ZIF for DVI output
• Wii SDA and SCL testpoints
• MODE solder jumper

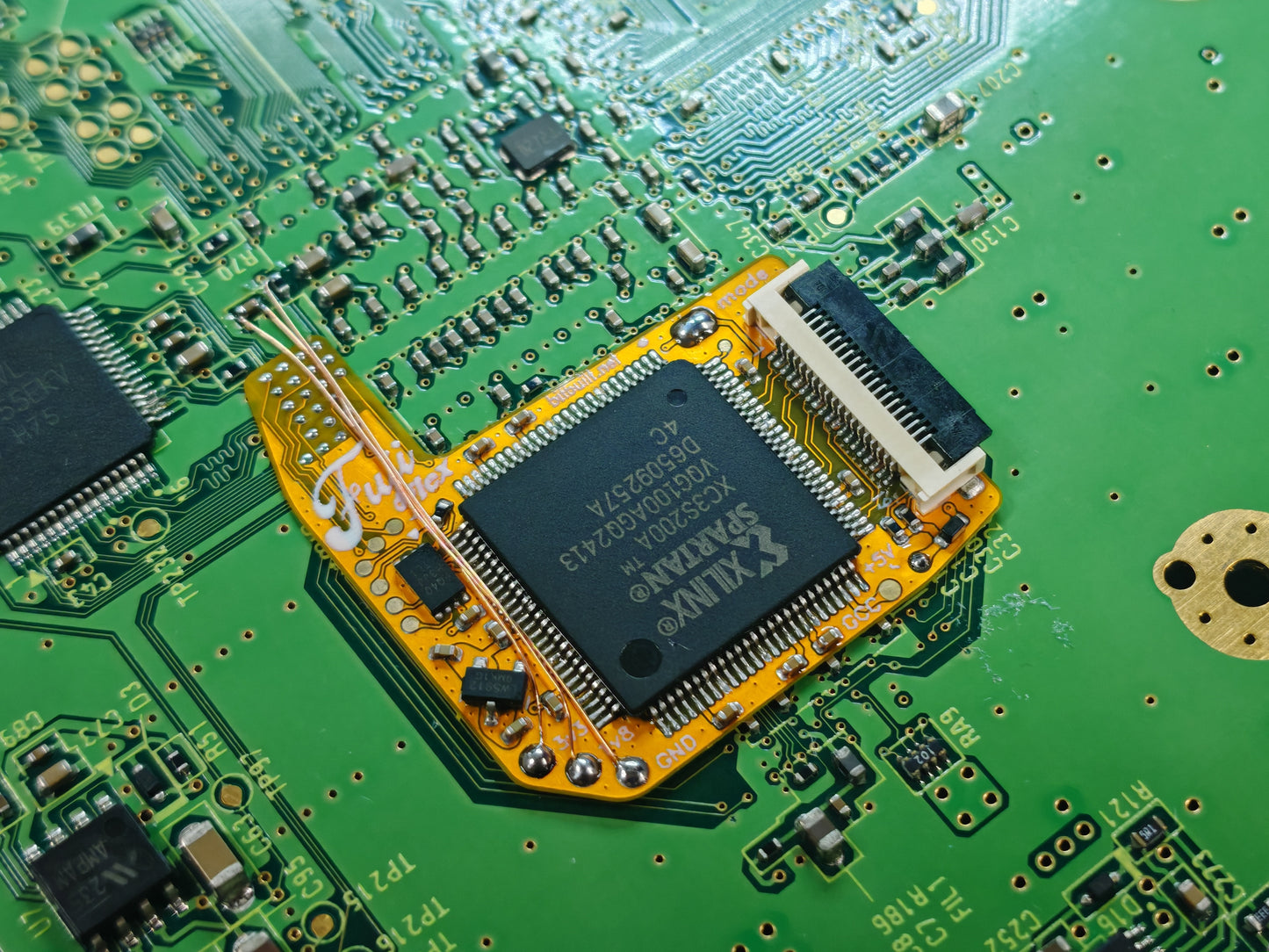

• Compatible with the GC Nano and Short Stack

Use a 19-pin 0.5mm pitch FFC (AWM 20624) to connect Fujiflex to your screen driver board or output adapter PCB.

Power consumption details:

• 34mA @ 3.3V
• 63mA @ 1.8V
• Total power consumption: 225mW

Fujiflex is an advanced mod and is not recommended for beginners.

Designed in KiCAD. Manufactured by PCBWay.

Source: https://github.com/mackieks/fujiflex
