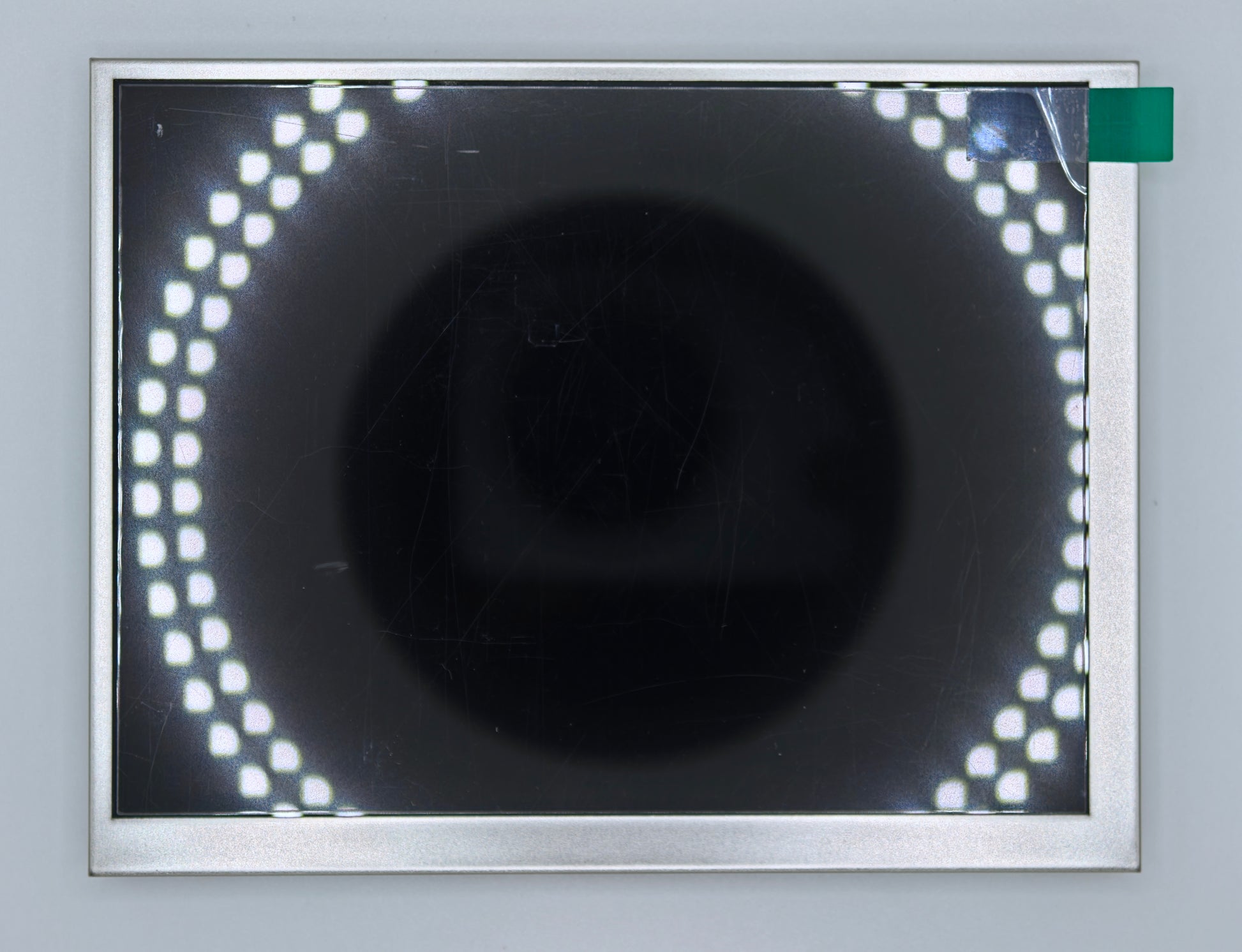

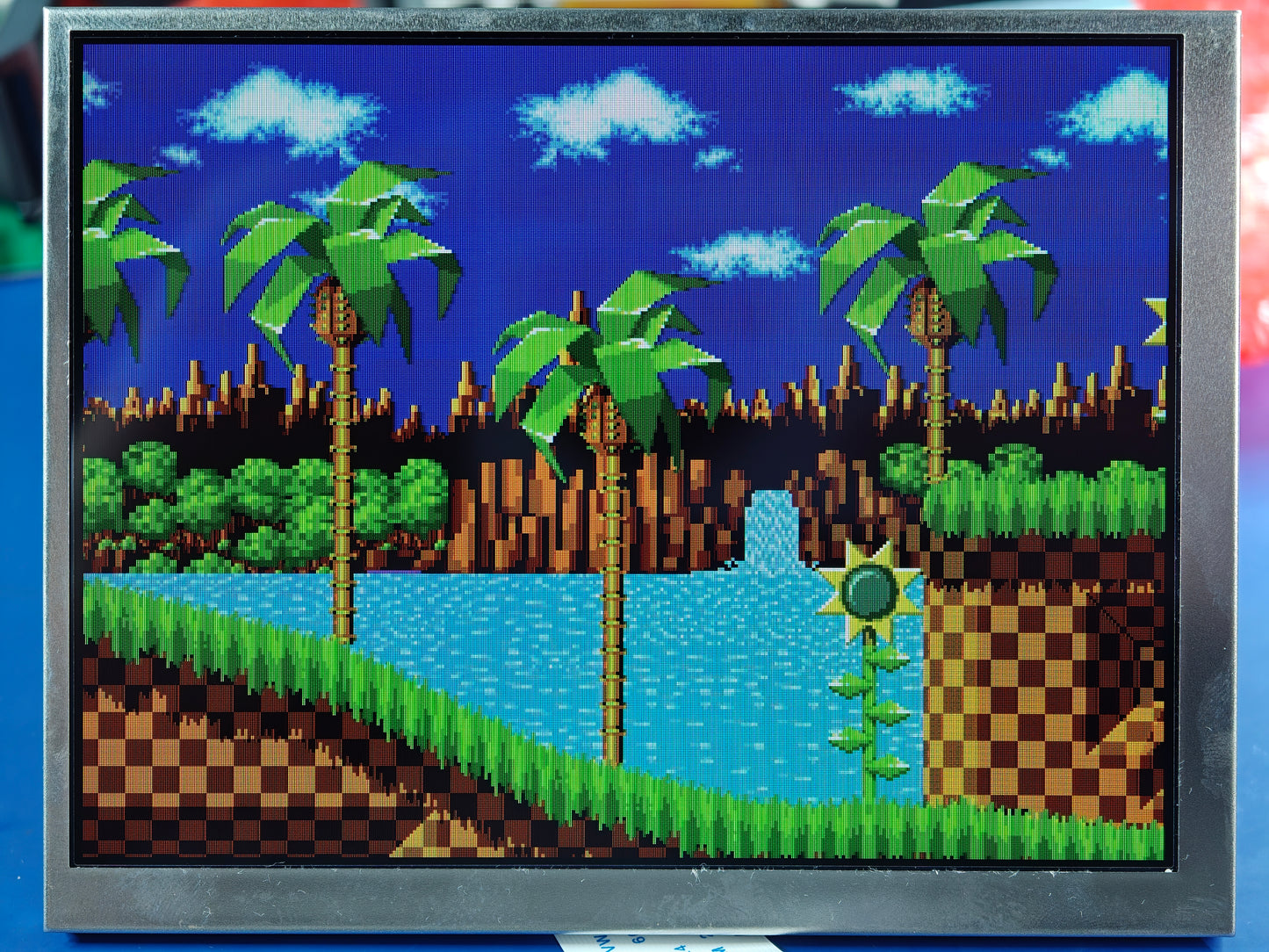

5.7" 640x480 IPS LCD (40pin)

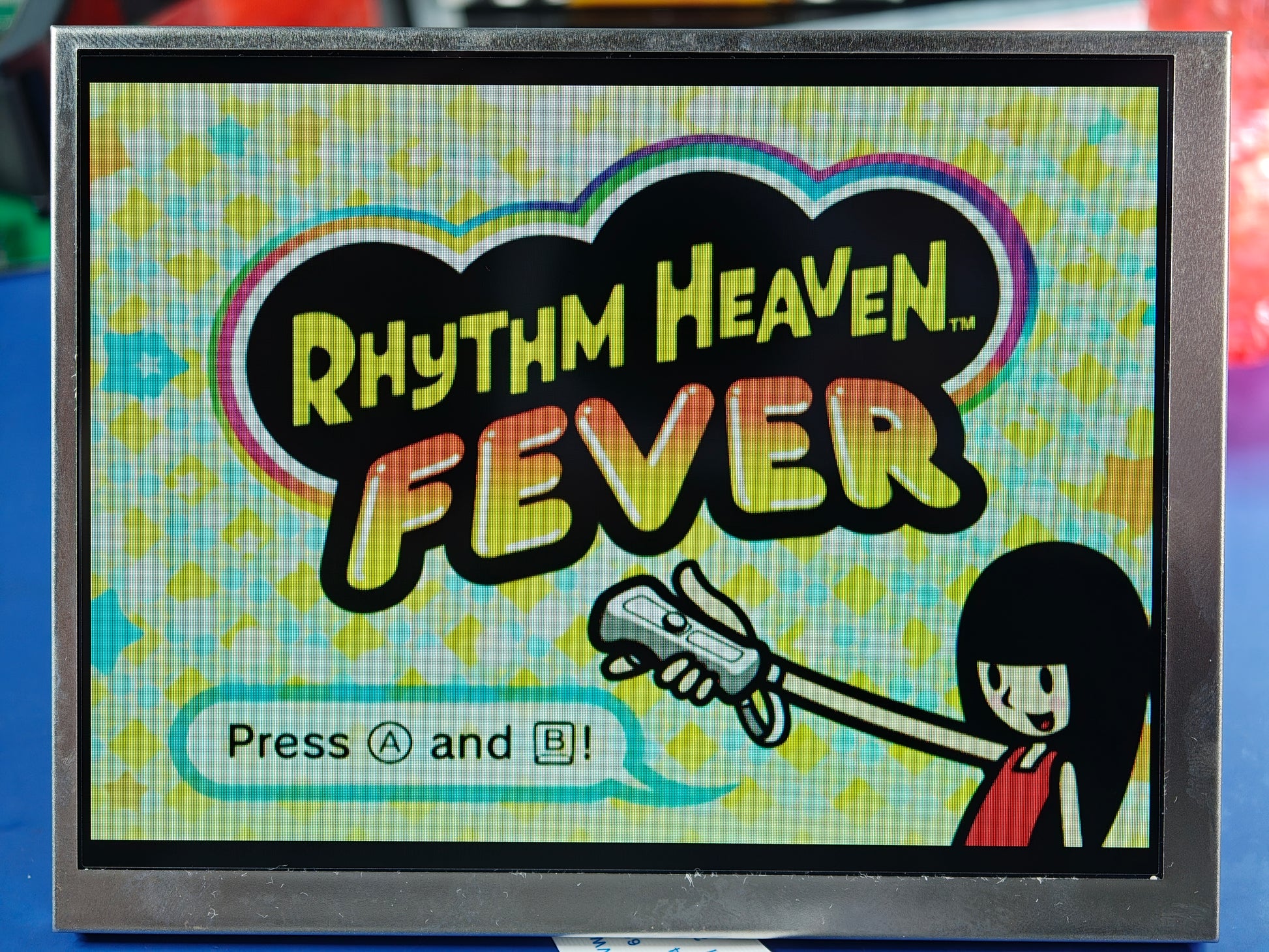

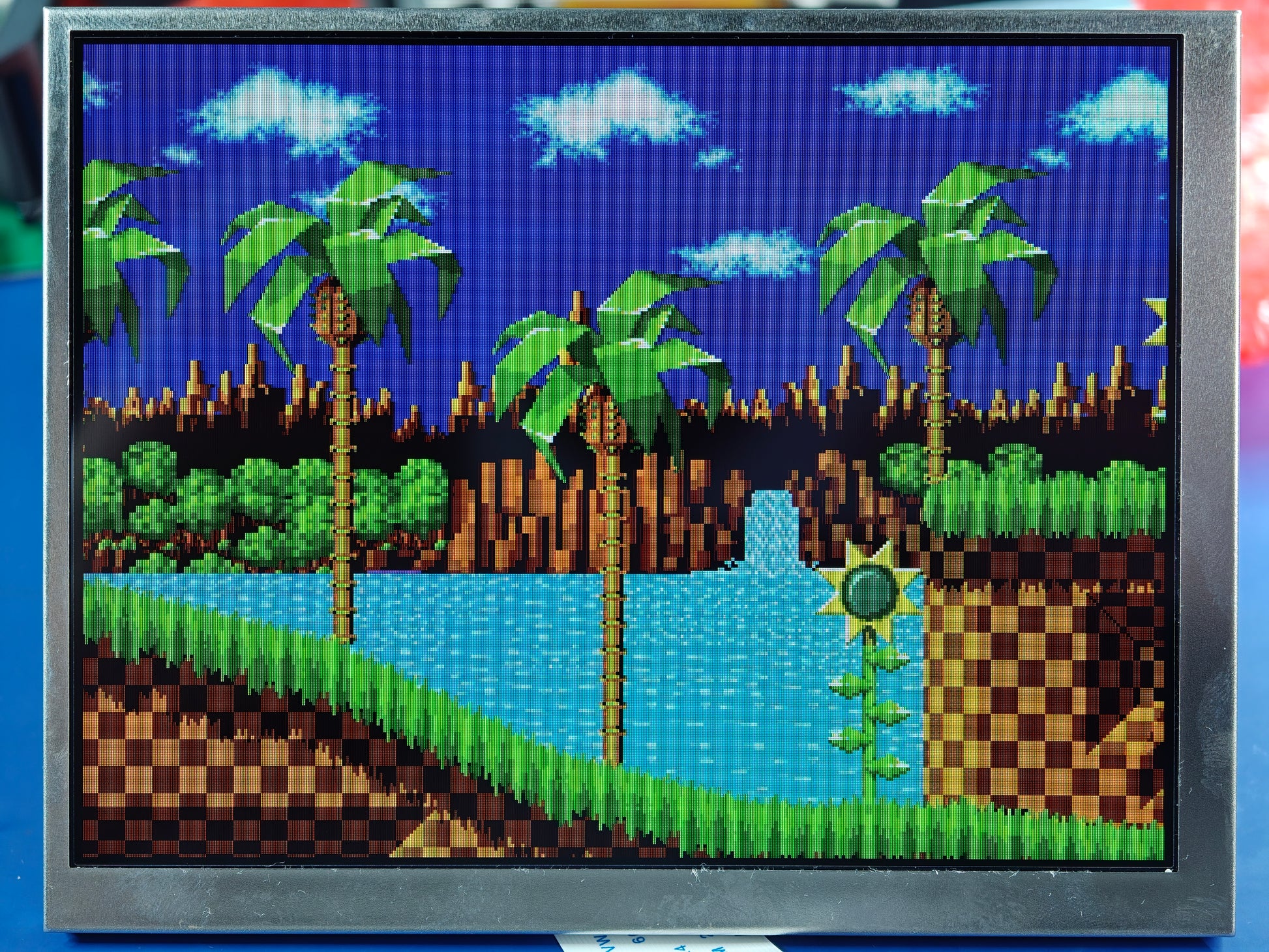

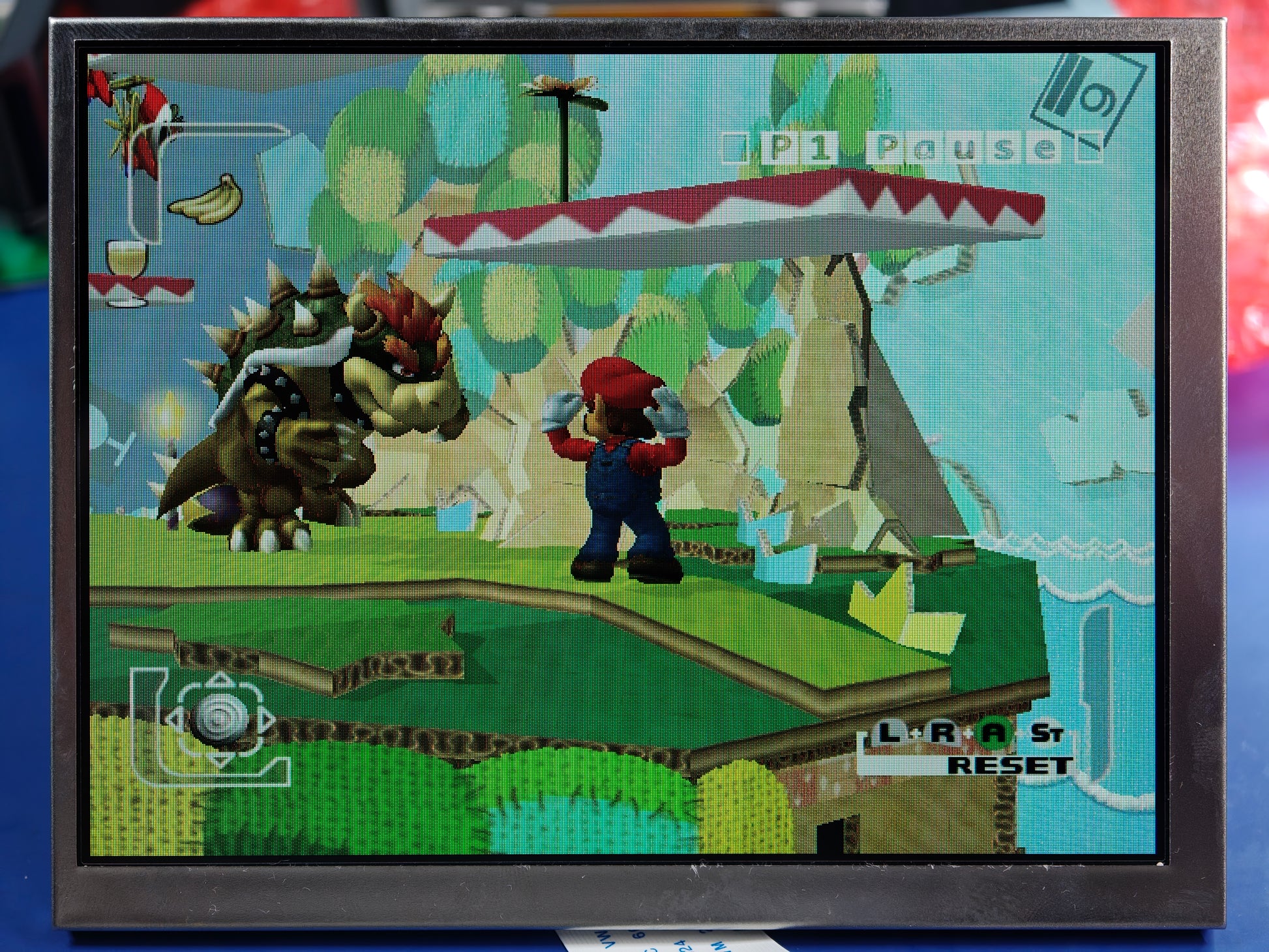

5.7" 640x480 high-gloss IPS LCD with standard 40-pin RGB24 interface. Viewing angles are excellent and a monumental upgrade from the old 5.6" 640x480 TN LCD.

Compatible with RVL-DD using a special (not public) bitstream or FPC adapter (not included), Retro GEM, or other 40-pin 640x480 driver boards. No guarantees on compatibility— recommended for power users only.

You'll need a 40-pin FFC (not included) to connect the panel to your driver board.

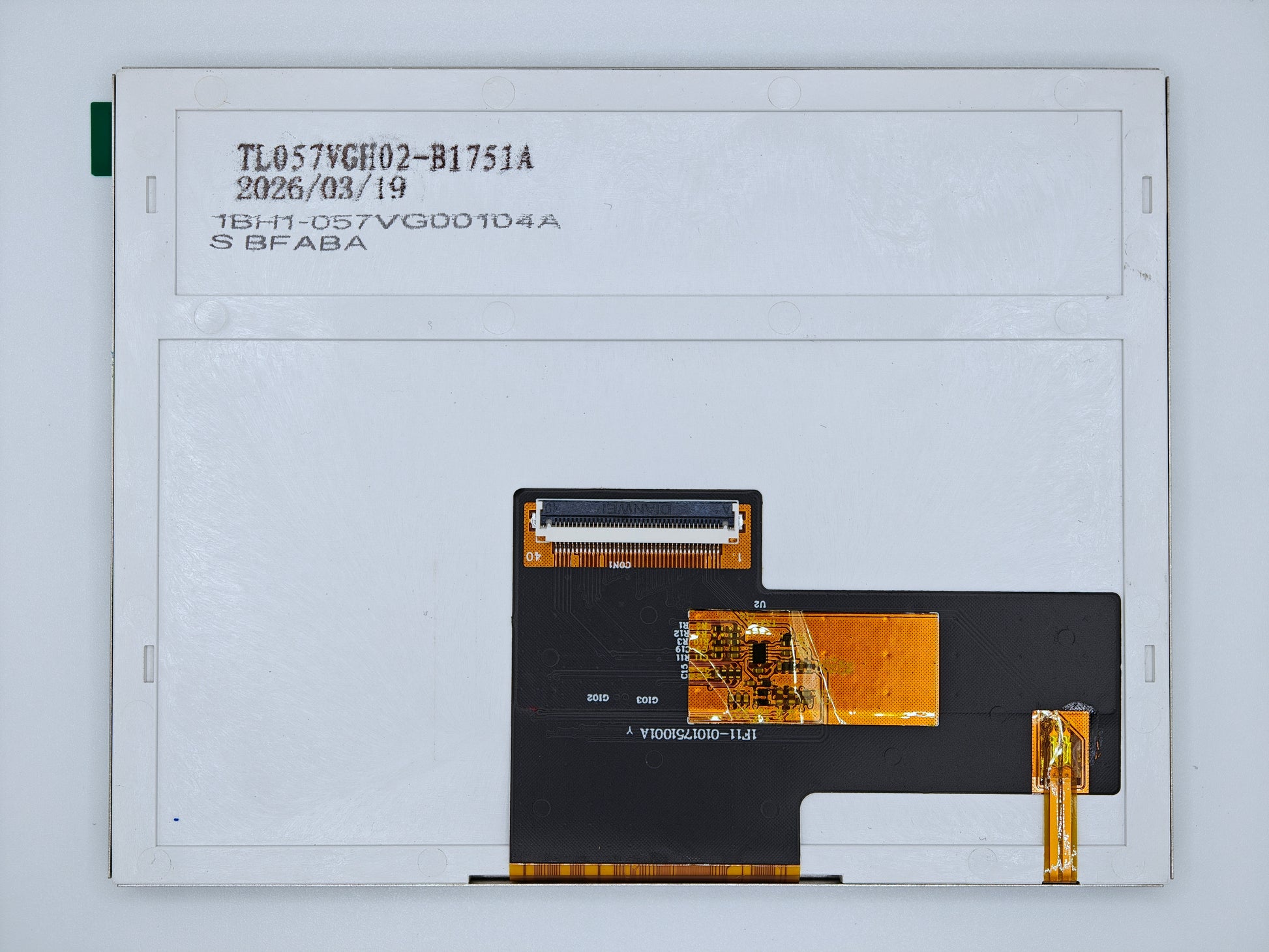

There are two revisions of the LCD. The newer rev is 0.1mm thinner but is otherwise identical. You may receive either rev, since I don't differentiate between them in inventory.

These are being sold at cost. Wholesale pricing direct from the manufacturer in China, with just a 3% markup to cover fees.

Datasheet download (old rev)
Datasheet download (new rev)

Mechanical spec:
