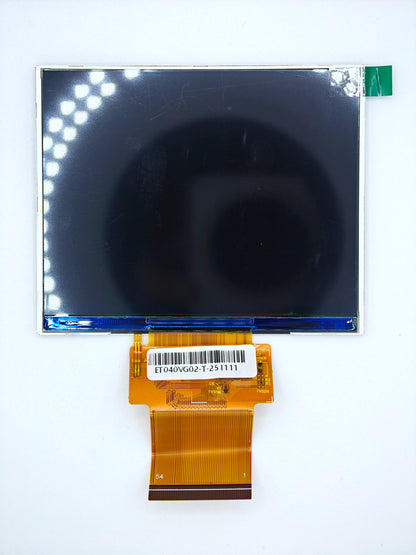

4" 640x480 IPS LCD (54pin)

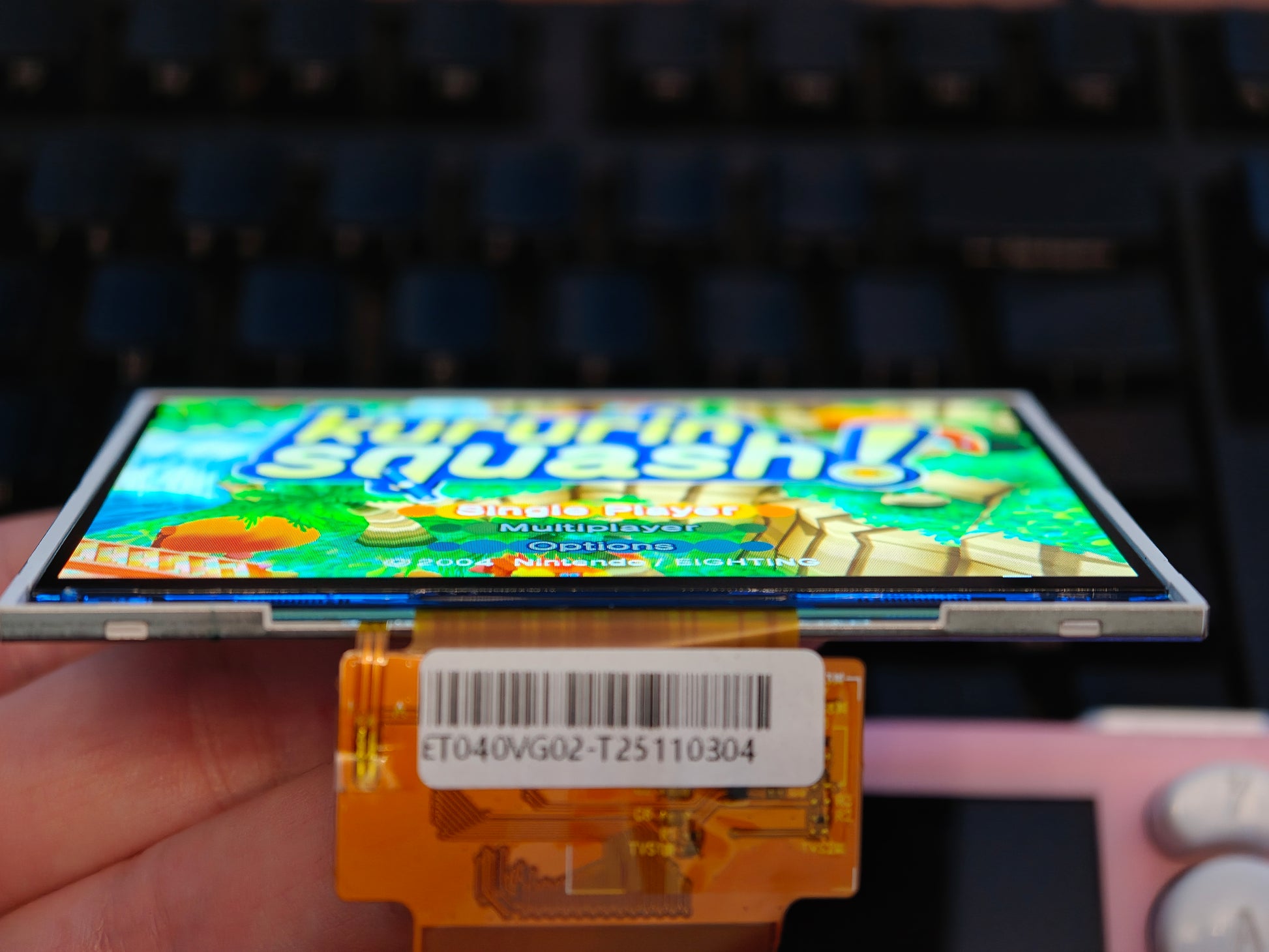

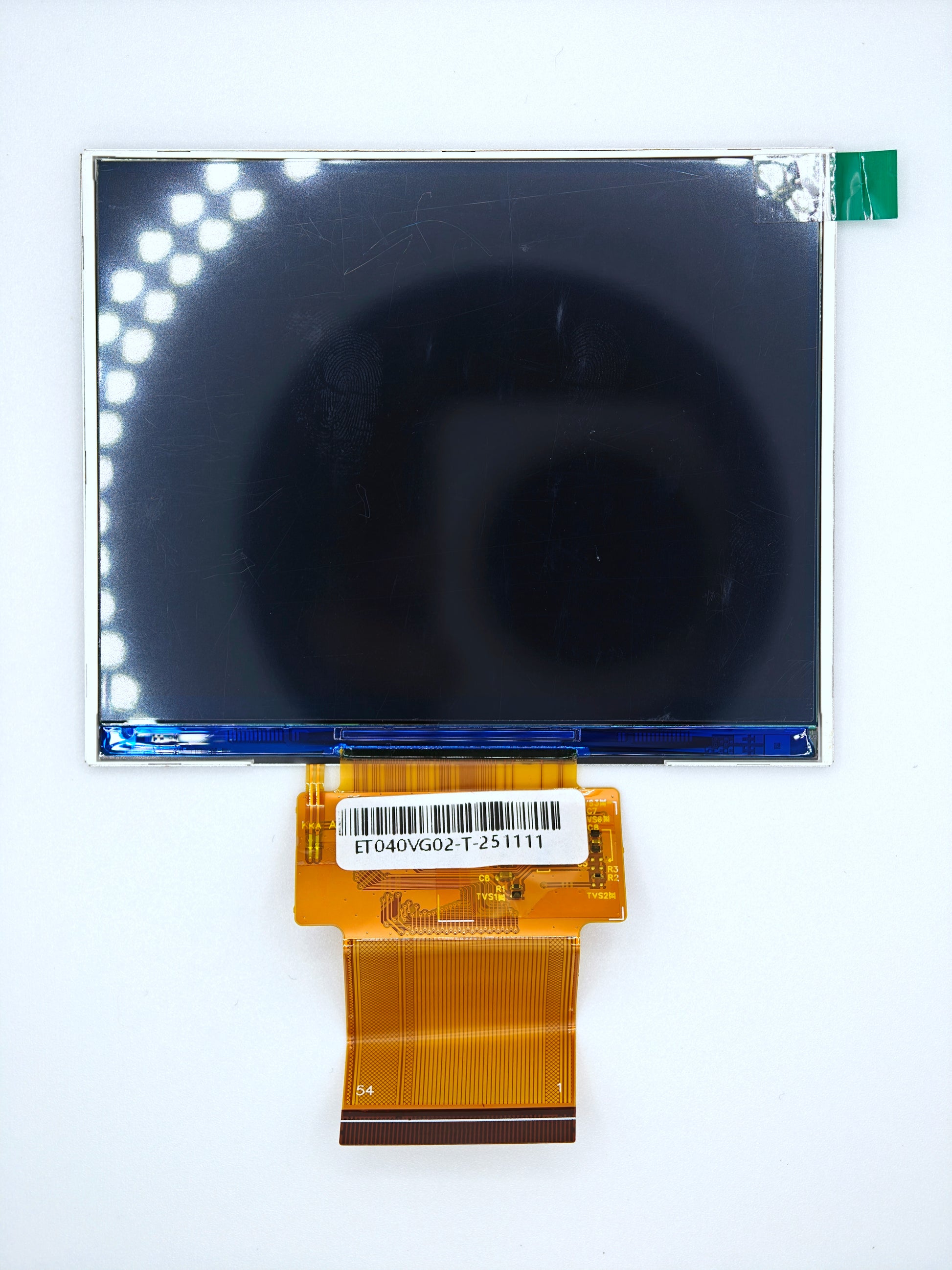

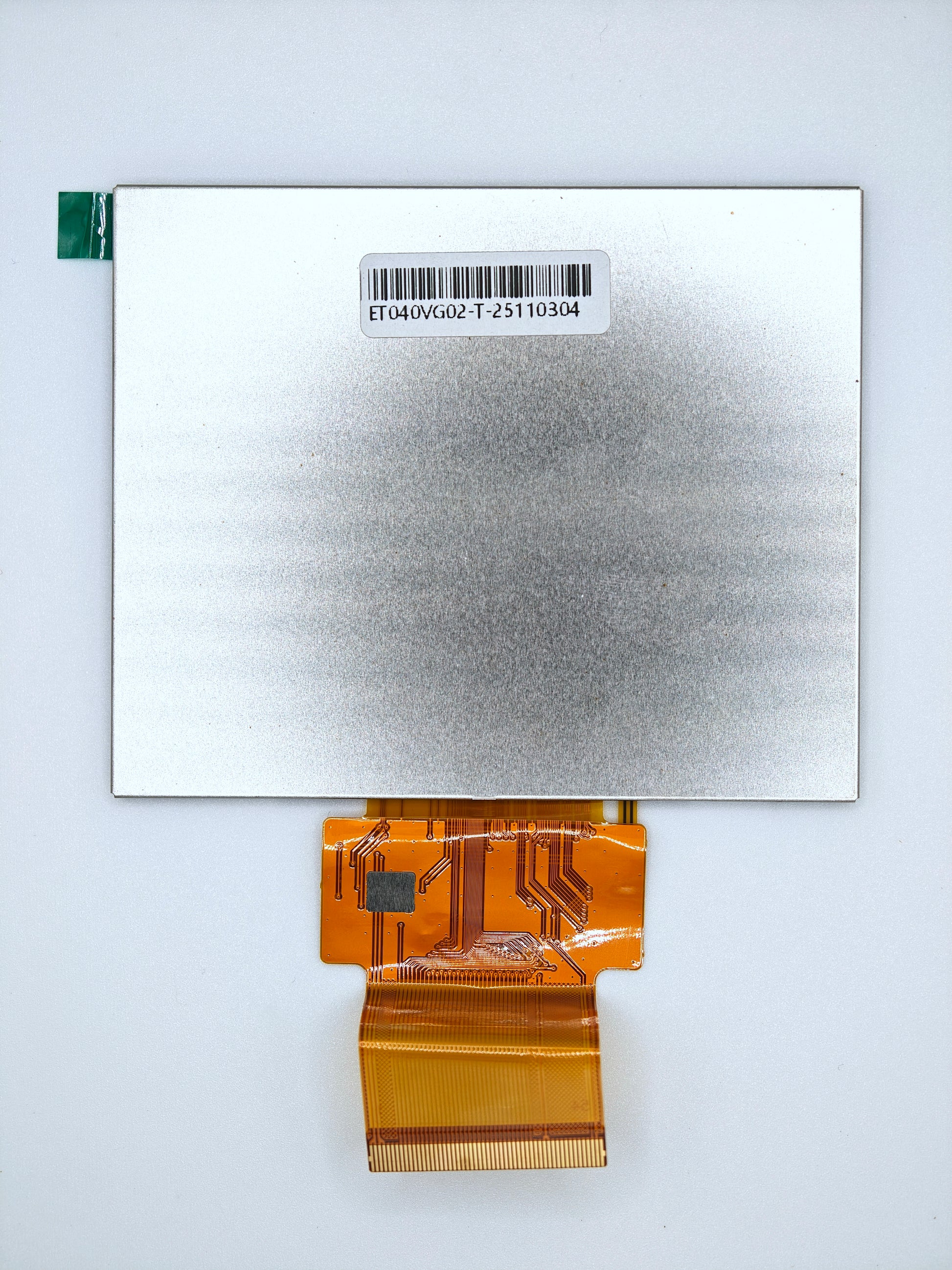

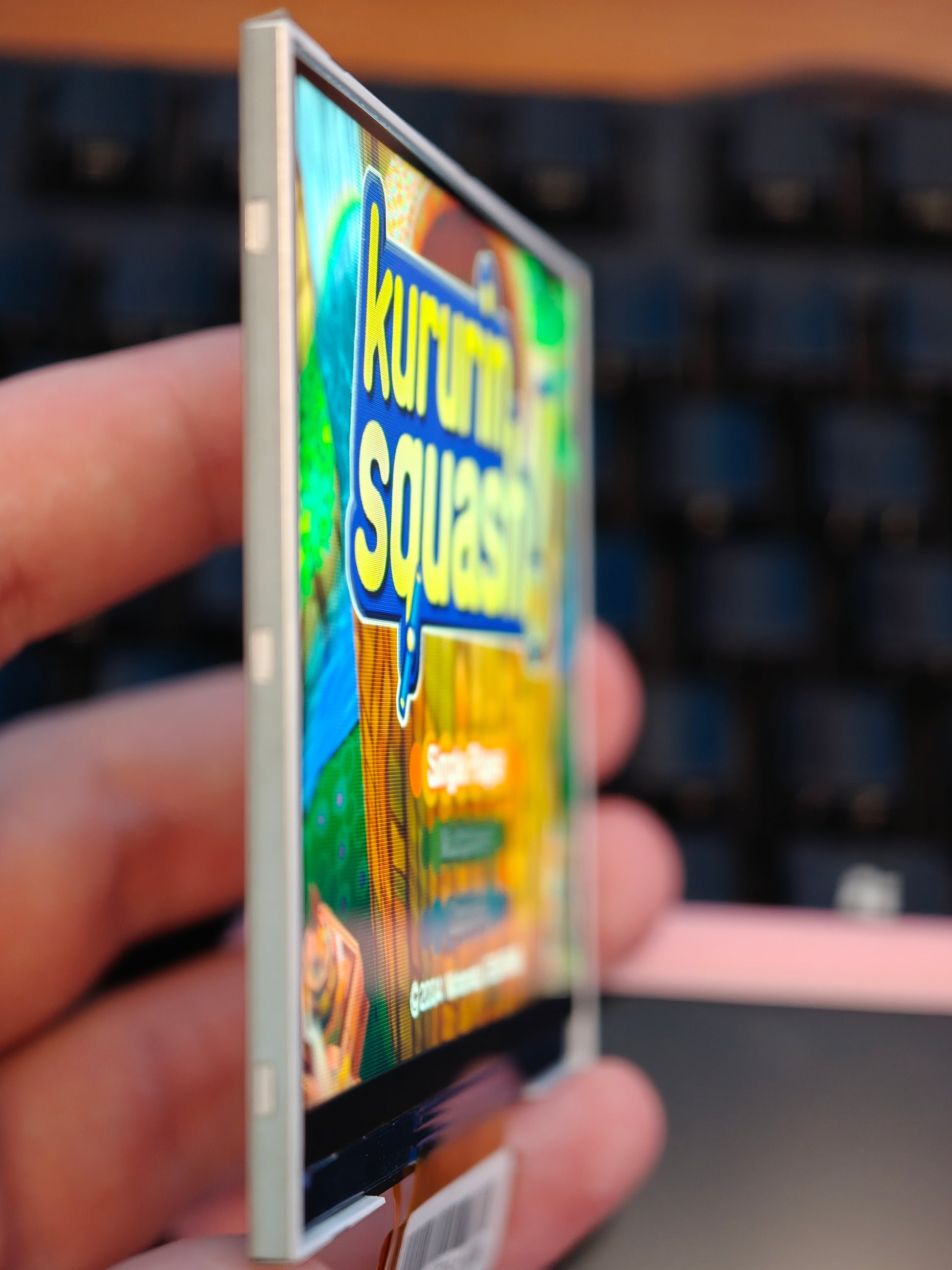

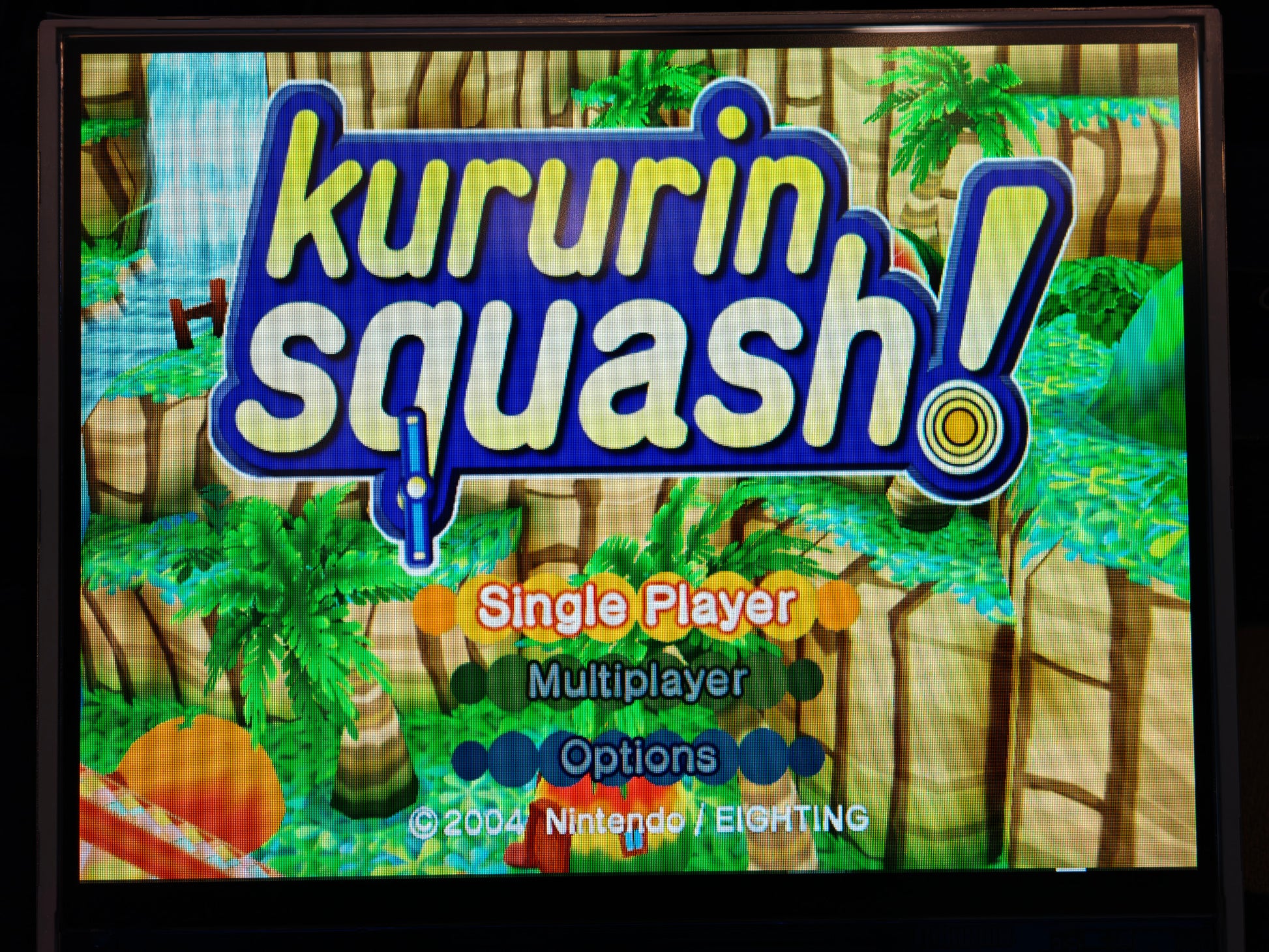

4" 640x480 IPS LCD with 54-pin RGB24 interface. Model number ET040VG02-T. High brightness (800 nit) panel with some of the best viewing angles I've seen on any LCD, ever!

These are being sold at cost. Zero markup-- you pay exactly what I paid. Note that these are not cheap in small quantities and tariffs were high.

The 54-pin FFC pinout is identical to the commodity 3.5" 640x480 IPS panel, which means it will be plug-and-play compatible with RVL-DD at some point in the near future.

It does NOT work with the UTHDMI035 driver board at this time, but may work with other generic 640x480 driver boards. Power users can drive it with a RetroGEM Shiny or another custom driver board.

Datasheet download link

Timing information:

Sync polarity (Positive HSYNC, Positive VSYNC):

Mechanical spec:
